You have spent weeks perfecting your schematic and routing every trace. The layout looks great on screen. Then you send the Gerber files to your fabricator, and the reply comes back: “Design rule violations found. Please revise and resubmit.” That single email can cost you a week of delays and thousands of rupees in respin charges.
This is exactly why a proper PCB DFM (Design for Manufacturability) checklist matters more than most engineers realize. At Megabyte Circuit Systems in Ahmedabad, we review hundreds of designs every month. Roughly 40% of first submissions have at least one DFM issue that could have been caught before the files ever left the designer’s desk.
In this guide, I will walk you through a complete, practical DFM checklist built from real production experience. You will learn the critical design rules, exact tolerances, common mistakes, and how to prepare files that go straight to production without a single revision cycle.
PCB DFM (Design for Manufacturability) is the practice of designing a printed circuit board so it can be fabricated, assembled, and tested reliably using standard manufacturing processes. It bridges the gap between what looks correct in your EDA tool and what actually works on the production floor.
DFM is not just about avoiding errors. It is about optimizing your design so the fabricator can produce it at the highest yield, lowest cost, and fastest turnaround. A board that passes DRC (Design Rule Check) in your software may still fail DFM review because EDA tools do not account for real-world manufacturing constraints like etch compensation, drill wander, or registration tolerances.
In my 20+ years at Megabyte Circuit Systems, I have seen a clear pattern. Engineers who run DFM analysis before submission get their boards right on the first order over 90% of the time. Those who skip it face revision cycles that add 5 to 10 working days to their timeline.
The core goal is simple: design your board so any competent fabricator can manufacture it without special instructions, workarounds, or compromises.
Quick Technical Summary: PCB DFM is the process of verifying that a board design meets all real-world manufacturing constraints before fabrication. It reduces respins, improves yield, and shortens time to production. A proper DFM check catches issues that standard EDA design rule checks miss.
DFM analysis is a systematic review of your PCB design files against a fabricator’s actual manufacturing capabilities. It catches problems that cause scrapped panels, low yields, or outright production failures.
Here is what is at stake. A single respin for a 4-layer board in India typically costs ₹8,000 to ₹25,000 when you factor in new tooling, re-queuing, and shipping delays. For prototype runs, the time cost is often worse than the financial cost. I always tell my clients: 30 minutes of DFM review saves 30 days of frustration.
Common issues caught during DFM analysis include:
When you work with a manufacturer that offers PCB manufacturing services with built-in DFM review, these issues get flagged before tooling begins. But it is always better to fix them yourself first.
Quick Technical Summary: DFM analysis catches manufacturing-critical errors that EDA design rule checks miss. Common issues include insufficient annular rings, acid traps, trace-to-edge violations, and missing solder mask dams. Fixing these before submission avoids costly respins averaging ₹8,000 to ₹25,000 per revision.
This is the checklist we use internally at Megabyte Circuit Systems when reviewing incoming designs. Follow these steps in order before exporting your final Gerber files.
Trace width depends on current carrying requirements and copper weight. For standard 1 oz copper on an outer layer, the minimum recommended trace width is 0.15mm (6 mil) for signal traces. For power traces, calculate based on IPC-2152 current capacity charts.
Minimum trace-to-trace spacing should match your fabricator’s capability. For most Indian manufacturers, 0.15mm (6 mil) is the safe minimum for standard processes. Going below 0.1mm (4 mil) requires advanced processing and increases cost significantly.
The annular ring is the copper pad area surrounding a drilled hole. IPC-6012 Class 2 requires a minimum annular ring of 0.05mm (2 mil) after all tolerances. However, for production reliability in standard processes, I recommend a minimum of 0.15mm (6 mil).
For vias, ensure the pad diameter is at least 0.25mm larger than the drill diameter. A 0.3mm drill should have a pad of at least 0.55mm.
Standard mechanical drilling supports hole diameters from 0.2mm to 6.5mm. The minimum hole-to-hole spacing should be at least 0.25mm (edge to edge). Holes closer than this cause drill breakage and registration problems.
If your design needs vias smaller than 0.2mm, you will need laser drilling, which is available for multilayer PCBs but adds to the cost.
Solder mask clearance (the gap between the mask opening and the copper pad edge) should be 0.05mm to 0.075mm on each side. The minimum solder mask dam (the mask web between two adjacent pads) must be at least 0.1mm. Below this, the mask cannot hold during processing and will lift.
Silkscreen lines should be at least 0.15mm wide with a minimum text height of 0.8mm. Never allow silkscreen to overlap exposed copper pads.
Maintain a minimum 0.3mm clearance between any copper feature and the board edge (route path). For V-scored panels, increase this to 0.5mm. Copper too close to the edge gets exposed during routing, creating short-circuit risks and corrosion paths.
For double layer PCBs, through-hole vias are standard. If your design uses blind or buried vias, confirm your fabricator supports them and understand the added layer-stacking constraints.
Never place vias directly on BGA pads unless you are using via-in-pad with plated-over fill, which requires additional processing steps.
After all corrections, run your EDA tool’s DRC one final time. Then export Gerber files (RS-274X format), an Excellon drill file, and a pick-and-place centroid file if the board will go through assembly. Use our PCB calculator to get an instant estimate based on your final specifications.
Quick Technical Summary: A complete DFM checklist covers seven areas: trace width/spacing, annular rings, drill sizes, solder mask/silkscreen rules, board edge clearances, via validation, and final file export. Minimum safe values for standard Indian fabrication are 0.15mm trace/space, 0.15mm annular ring, and 0.3mm copper-to-edge clearance.

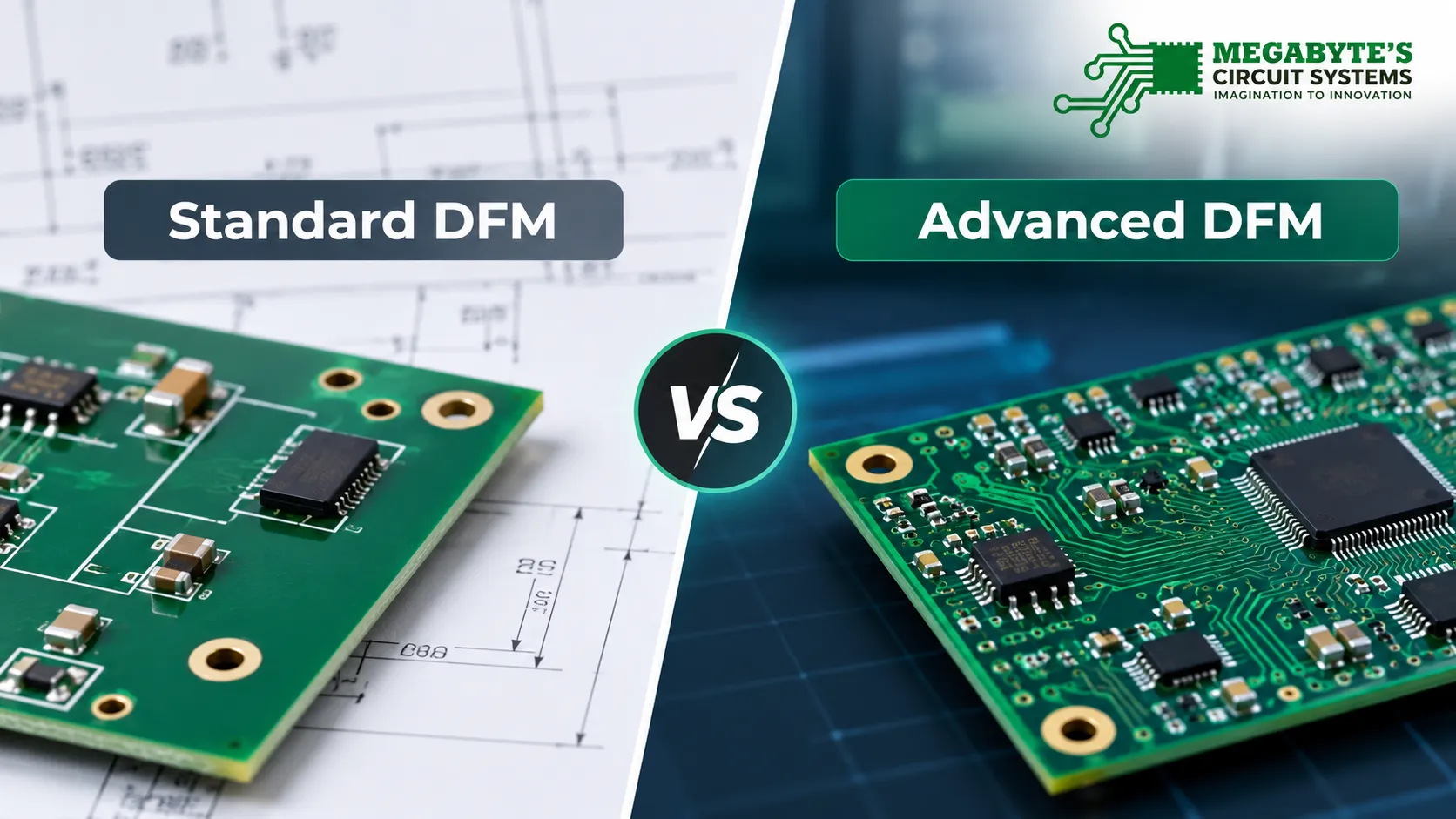

Choosing the right design rules depends on your board complexity. Here is a comparison of typical fabrication capabilities.
Parameter | Standard Process | Advanced Process | HDI Process |
Minimum Trace Width | 0.15mm (6 mil) | 0.1mm (4 mil) | 0.075mm (3 mil) |
Minimum Trace Spacing | 0.15mm (6 mil) | 0.1mm (4 mil) | 0.075mm (3 mil) |
Minimum Drill Size | 0.3mm | 0.2mm | 0.1mm (laser) |
Minimum Annular Ring | 0.15mm | 0.1mm | 0.075mm |
Minimum Solder Mask Dam | 0.1mm | 0.075mm | 0.05mm |
Layer Count Support | 1 to 8 layers | Up to 16 layers | Up to 20+ layers |
Typical Turnaround (India) | 3 to 5 days | 5 to 8 days | 10 to 15 days |
Cost Impact | Baseline | 1.5x to 2x | 3x to 5x |
For most IoT, industrial, and consumer applications, standard process rules are perfectly adequate. Advanced process is necessary when working with fine-pitch components (0.4mm pitch BGA or QFP-100+). HDI is reserved for high-density designs like smartphone motherboards or advanced medical devices.
One thing I always tell my clients: design to standard rules wherever possible, even if your fabricator supports tighter tolerances. It gives you maximum flexibility to switch suppliers and keeps costs predictable.
Before you upload your Gerber files, verify every item on this list:
For designs targeting single layer PCBs, pay special attention to trace width on power nets, as you cannot distribute current across multiple layers.
Quick Technical Summary: The engineer’s DFM quick reference covers 12 checkpoints spanning trace geometry, drilling, solder mask, silkscreen, board outline, and file export. Using RS-274X Gerber format and Excellon drill files with consistent units is essential for error-free fabrication.
A design that passes DFM checks is only half the equation. The fabrication process must also follow strict quality standards to deliver reliable boards.
At Megabyte Circuit Systems, every production batch goes through multiple inspection stages aligned with IPC standards:
We also verify registration accuracy (layer-to-layer alignment within ±0.075mm), hole positional accuracy (within ±0.05mm), and copper thickness tolerance per IPC-6012.
When your design follows proper PCB DFM guidelines, these tests become confirmations rather than filters. Boards that are designed correctly pass at yield rates above 98%, while boards with DFM violations can drop below 85%.
Quick Technical Summary: DFM-compliant boards are validated through AOI, flying probe testing, and E-Test against IPC-A-600 and IPC-6012 standards. Proper DFM design achieves production yields above 98%, while non-compliant designs may fall below 85%.
Good DFM is one of the most effective cost reduction strategies in PCB manufacturing. Here is how design choices directly impact your budget.
Use standard trace/space rules. Designing at 0.15mm trace/space instead of 0.1mm can reduce fabrication cost by 20% to 30% because it eliminates the need for controlled etch processes and tighter registration.
Minimize drill sizes. Every unique drill size adds tool changes. Consolidate to 3 to 5 standard drill sizes where possible. Drills below 0.3mm wear faster and increase per-hole cost.
Optimize panel utilization. Work with your fabricator on panelization. A well-panelized design can fit 20% to 40% more boards per panel, directly reducing unit cost. Our team at Megabyte offers panelization review as part of the PCB design service.
Avoid unnecessary via types. Blind and buried vias cost 2x to 3x more than through-hole vias. Use them only when routing density demands it.
Standardize copper weight. Using 1 oz copper on outer layers and 0.5 oz on inner layers is the most cost-effective stackup for most applications.
For a quick cost estimate on your next project, use our PCB calculator to see how different design parameters affect pricing in real time.
Quick Technical Summary: DFM-driven cost optimization includes designing to standard 0.15mm trace/space rules (saving 20% to 30%), consolidating drill sizes, optimizing panelization, avoiding unnecessary blind/buried vias, and standardizing copper weights. These choices reduce cost without compromising board reliability.
DFM (Design for Manufacturability) in PCB manufacturing is the process of reviewing and optimizing a board design to ensure it can be fabricated reliably and cost-effectively using standard manufacturing processes. It involves checking trace widths, drill sizes, clearances, solder mask rules, and file formats against the fabricator’s actual capabilities.
DRC (Design Rule Check) runs inside your EDA tool and verifies your design against the rules you defined. DFM goes further by checking your design against real manufacturing constraints like etch compensation, drill wander, and registration tolerance. A board can pass DRC but fail DFM.
Most Indian PCB manufacturers support a minimum trace width of 0.15mm (6 mil) for standard process fabrication with 1 oz copper. Advanced processes can go down to 0.1mm (4 mil), and HDI processes support 0.075mm (3 mil), but costs increase significantly.
RS-274X (Extended Gerber) is the industry standard format accepted by virtually all fabricators. Include separate files for each copper layer, solder mask, silkscreen, paste mask, board outline, and drill drawing. Always export the Excellon drill file with matching units.
Proper DFM reduces cost by improving first-pass yield (fewer scrapped panels), eliminating respin charges, reducing the need for advanced processing, and enabling better panel utilization. Engineers who follow DFM guidelines typically save 15% to 30% on total project cost.
The key standards include IPC-2221 (generic design standard), IPC-2222 (rigid board design), IPC-6012 (rigid board qualification and performance), IPC-A-600 (acceptability of bare boards), and IPC-2152 (current carrying capacity). Referencing these standards during DFM review ensures globally accepted quality levels.
A solid PCB DFM checklist is the difference between a smooth production run and weeks of delays chasing design revisions. The rules are not complicated. Maintain proper trace spacing, respect annular ring minimums, follow solder mask dam requirements, and export clean Gerber files in the right format.
At Megabyte Circuit Systems in Ahmedabad, Gujarat, we review every incoming design for DFM compliance before production begins. But the fastest path to production is getting it right before you submit. Use the checklist in this guide, verify your design against the comparison table, and upload your Gerber files with confidence.
Ready to get started? Use our PCB calculator for an instant estimate, or send us your Gerber files for a free DFM review with your quote request. Let’s get your boards built right, the first time.
